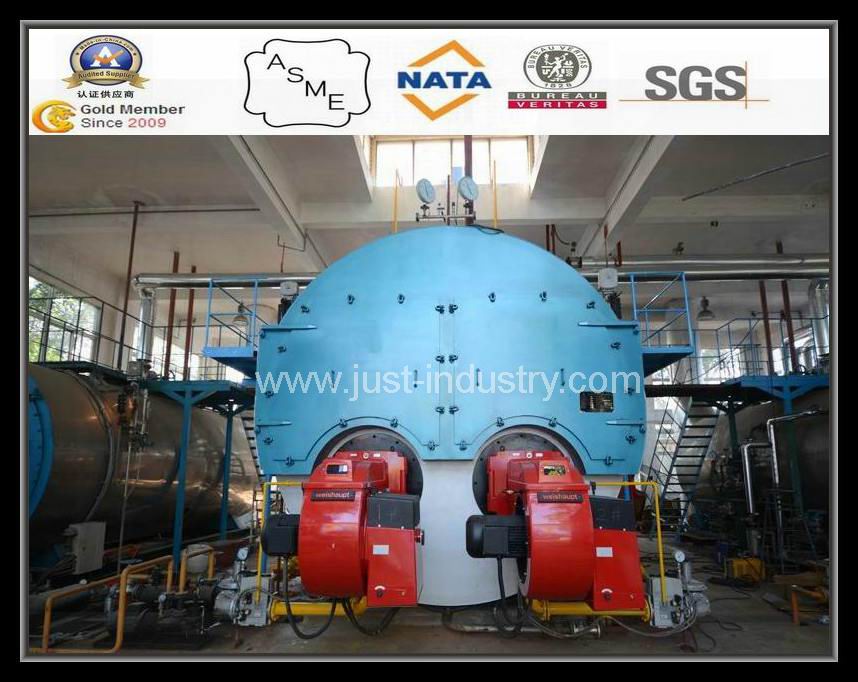

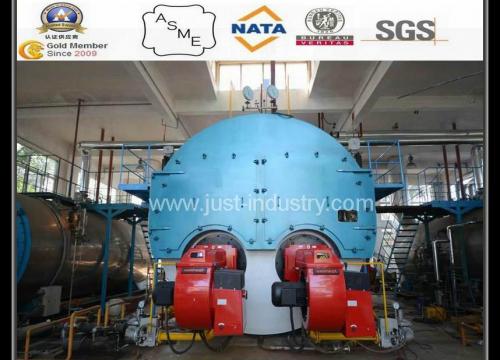

WNS series automatic Oil&Gas-fired boiler is horizontal, three-pass, wet back shell boiler. The main structure includes: Boiler shell, Bellows furnace, Returns burns room, Threaded gas pipe, etc. The shell and the furnace are made by20gboiler special steel. Furnace & Returns burns room, Tube plate & Boiler shell and Returns burns room & Returns burns room cylinders are connected by the method of flanged edge connecting.
1.The burner and the PLC be
imported fromGermanyand Intaly
2. Rated Evaporation: 0.5-40Ton/hr
3. Compact structure. Logical design. Highly
effective
4. Safe burning condition, low gas blacness
5. Save investment. Easy installation and moving
6. Power oil conserving. 24 Hours working life.
Low noise.
7.Hinged drum access doors so simplify fitting.
8.Fully sealed and pressure tested to prevent exhaust gas leakage
9.Multi furnace viewing ports.
10.SGS or BV inspection through whole manufacturing progress, and long-term service
after sale.
11. High effictive, low fuel consumption
12. Coustomer's Specification is available on
Request
13. ASME certificate,AS1228 available through
cooperation withAustraliaengineering organization.
14.After sales Service available instructing
installing,training in site. Warranty for boiler 12months.
15. For installing: Video will be supply to customers for easy understanding, Engineers are available instructing boiler installing,training in site; Beyond the warranty period, we charge the cost of spare parts but provide technician guidance and other service for free.
16. Welcome
to our factories, we assure that our products will satisfy your needs with
designs, competitive performance price ratio and best services.
RATING MW |
Kg/h f&@100℃ |
SHIPMENT WEIGHT |
SHIPMENT DEMENSION |
STEAM NOZZEL |
ELECTRIAL LOAD KW |
0.3 |
500 |
1900 |
2442*1330*1610 |
50 |
0.45 |
0.6 |
1000 |
4080 |
3040*1926*2100 |
50 |
1.5 |
0.95 |
1500 |
4700 |
4066*1700*2100 |
50 |
2.2 |
1.2 |
2000 |
7000 |
4053*2215*2546 |
50 |
4.5 |
1.8 |
3000 |
8300 |
4807*2308*2634 |
80 |
7.5 |
2.5 |
4000 |
11020 |
5019*2392*2690 |
100 |
7.5 |
3 |
5000 |
12300 |
5350*2240*2870 |
100 |
12 |
3.8 |
6000 |
14600 |
5880*2711*3034 |
150 |
12 |
5 |
8000 |
18650 |
6000*2745*3153 |
150 |
18.5 |
6.2 |
10000 |
21800 |
6334*2914*3335 |
150 |
22 |
7.5 |
12000 |
25300 |
6850*3000*3350 |
150 |
41.5 |
9.5 |
15000 |
30000 |
7500*3400*3500 |
150 |
55 |
12.5 |
20000 |
36500 |
7850*3400*3500 |
150 |
63 |
15.5 |
25000 |
40 |
9700*3655*4350 |
200 |
86 |
18.8 |
30000 |
44 |
10425*3910*4397 |
200 |
103.5 |
22 |
35000 |
46 |
11460*3920*4380 |
200 |
131 |
25 |
40000 |
53.8 |
11940*4020*4390 |
200 |
147.5 |
SPECIFIC INFORMATION AVAILABLE ON REQUEST |
